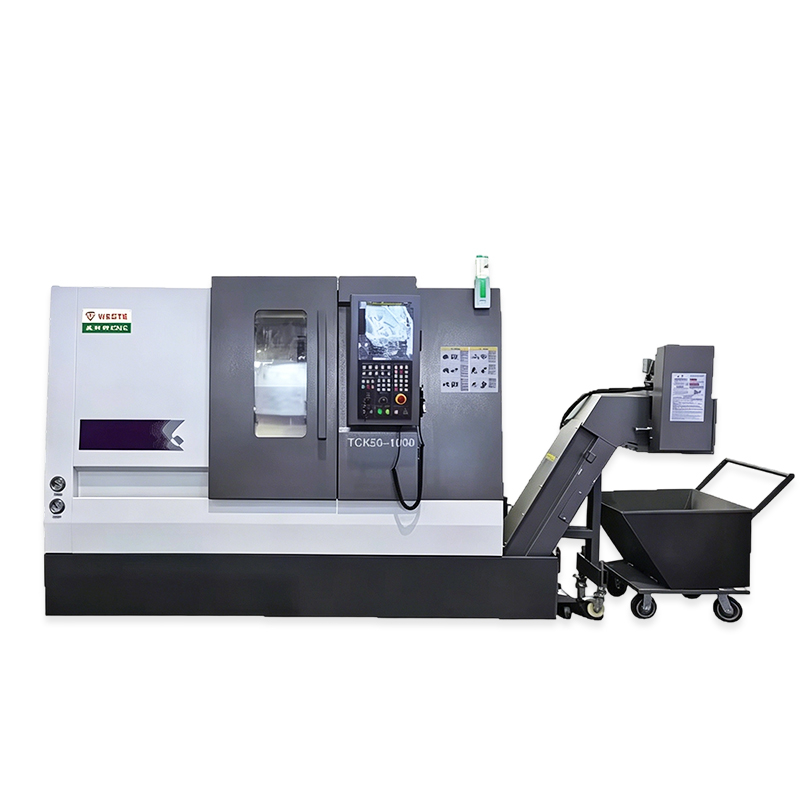

TCK50
WESTE
| Quantity: | |
|---|---|
Bed structure: The bed is inclined (at 30°/45°/60°), with a cross-sectional area 20%–30% larger than that of a flat bed. It has strong resistance to bending and torsion, and its rigidity is approximately 40% higher than that of a flat bed. Force distribution is reasonable: The cutting force is close to the direction of the workpiece's gravity, "gravity-assisted cutting", resulting in low vibration and little deformation. It is suitable for heavy loads and difficult-to-machine materials (such as alloy steel, stainless steel). Precision retention: The thermal deformation of the spindle and bed is small. The temperature rise of the guide rail during continuous processing for 8 hours is ≤ 5℃, and the precision retention is improved by approximately 60%. Positioning accuracy: With servo drive and ball screw, the repeat positioning accuracy can reach ±0.002mm, the roundness error is ≤ 0.003mm, and it meets IT5 level precision.
Main technical parameters | Units | TCK50A |
Maximum turning diameter of the bed | mm | 560 |
Maximum turning diameter of the cross slide | mm | 260 |
Maximum processing length | mm | 350 /500/800 |
Maximum bar diameter | mm | 55/75 |
Maximum diameter for disc-shaped processing | mm | 400/320 |
Form of the main shaft end | GB59001 | A2-6/8 |
Diameter of the main shaft through hole | φ/mm | 66/66/86 |
Range of main shaft rotational speed | r/min | 0-3000 |
Main shaft shifting method | Continuous adjustment | |
Power of the main shaft motor | KW | 2011/11/15 |
Form of the chuck | Hydraulic chuck | |
Size of the chuck | nch | 10" /12" |
Fast moving speed of the X-axis | m/min | 24 |
Fast moving speed of the Z-axis | m/min | 24 |
Torque of the X-axis servo motor | N. M | 7.5/10 |
Torque of the Z-axis servo motor | N . M | 7.5/10 |
Travel of the X-axis | mm | 240 |
Travel of the Z-axis | mm | 400/540/900 |
Form of the guide rail | Linear guide rail | |
Form of the tool holder | Horizontal 8/12 workstations | |
Size of the tool (square tool/punching tool) | mm | 25*25 / φ32 |
Form of the tailstock | Hydraulic | |
Diameter of the tailstock sleeve | φ/mm | 70/88 |
Travel of the tailstock sleeve | mm | 80 |
Conicality of the tailstock sleeve | MT5# | |
Rated total power | KW | 14/18 |
Rated total current | A | 30 |
Machine weight | kg | 3200/3600/4500 |
Machine size | mm) | 2700/2700/3300*2000*2000 |
