Main performance features：
1. The rectangular guide machine is adopted, which has good rigidity.
2. The workbench and guide rails undergo ultrasonic frequency spark quenching.
3. Workbench X Y.Z represents gear-driven automatic feed and manual operation.
4. The milling head can rotate 45 degrees.
Application：

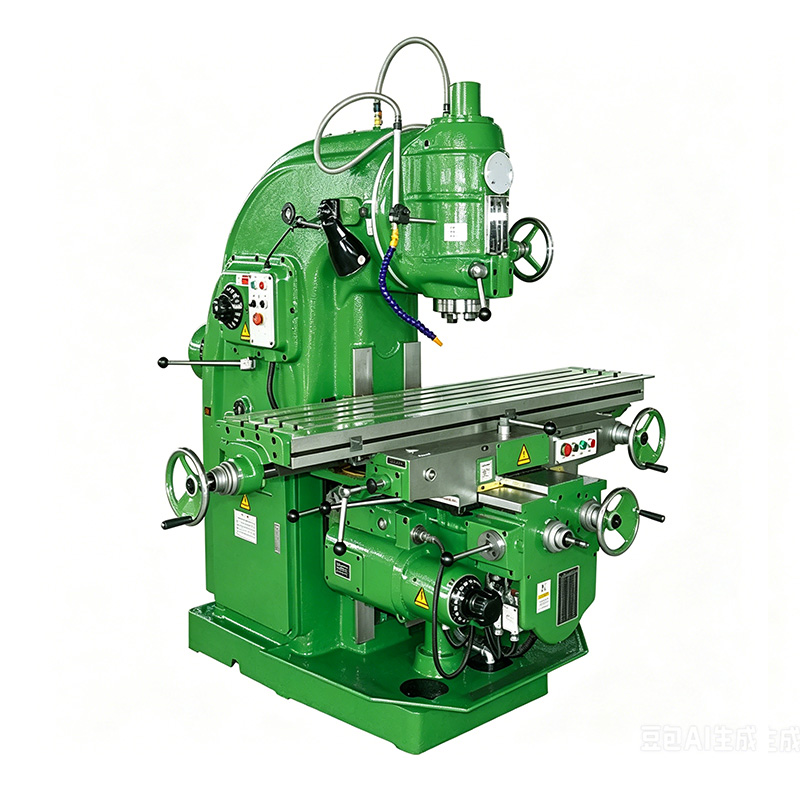

1.The vertical lifting platform milling machine is a general-purpose metal cutting machine tool.
2. The spindle taper hole of the machine tool can directly or through accessories install all cylindrical milling cutters, disc milling cutters, form milling cutters, end milling cutters and other tools, which is suitable for processing various small parts such as planes, inclined planes, grooves, holes and gears. It is an ideal processing equipment for industries such as mechanical manufacturing, molds, equipment, instruments and meters, automobiles, and motorcycles.
Specifications | UNIT | X5040 |
table size | mm | 400*1700 |
T-slots (N/W/D) | 3/18/90 | |
X travel (manual/auto) | mm | 900 |
Y travel (manual/auto) | mm | 315 |
Z travel (manual/auto) | mm | 385 |
table feed speed-X | mm/min | 6-3200 |
table feed speed-Y | mm/min | 6-3200 |
table feed speed-Z | mm/min | 3-1600 |
distance from spindle nose to table surface | mm | 115-500 |
spindle taper | ISO50 | |
spindle speed | rpm | 30-1500 |
spindle speed steps | 18 steps | |
spindle stroke | mm | 85 |
main motor power | kw | 11 |
torque of servo motor (X/Y/Z) | N.m | 15/15/23 |
overall size | mm | 2556*2159*2298 |
N.W. | kg | 4250 |
