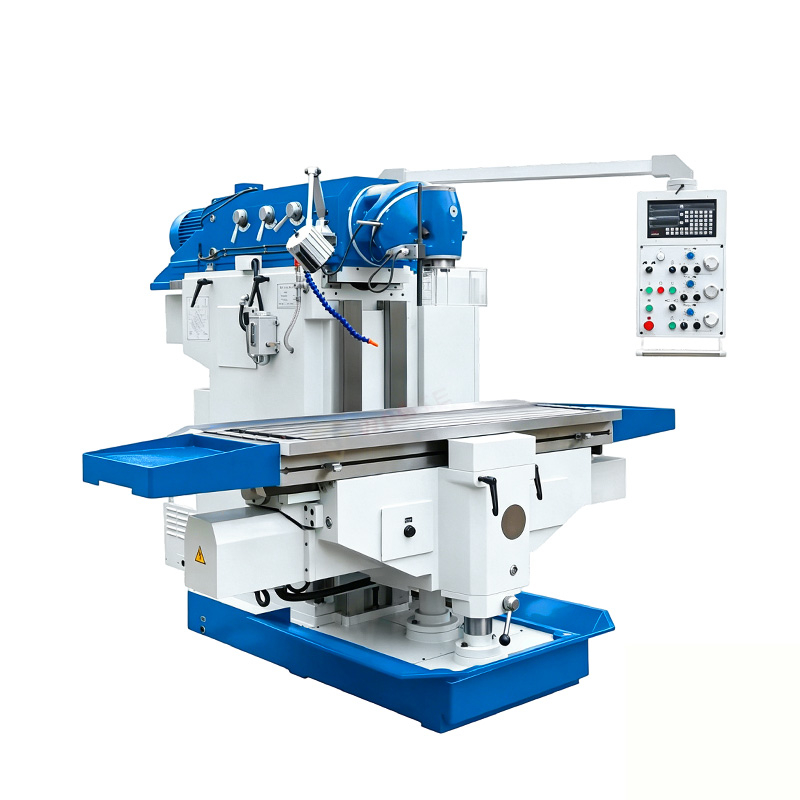

X5750A Ram Milling Machine

Specifications

Unit

X5750A

Table size

mm

500*1600

T-slots(NO./width/pitch)

mm

5/18/80

Table travel (X/Y/Z)

mm

1200/700/500

Swivel angle of milling head

-

360

Spindle taper

-

ISO50

Distance from spindle center to z-guide rail surface

mm

45-745

Table feed(X/Y/Z)

mm/min

10-1000/10-1000/5-500

Table rapid speed

-

2200/2200/1100

Distance between spindle nose and table surface

mm

50-550

Range of spindle speed

r.p.m

(27)30-2050

Main motor power

kw

7.5

Feed motor

kw

AC servo motor X/Y:15NM;Z:18NM

Max load

kg

1500

Overall size

mm

2625*2460*2080

weight

kg

5000
