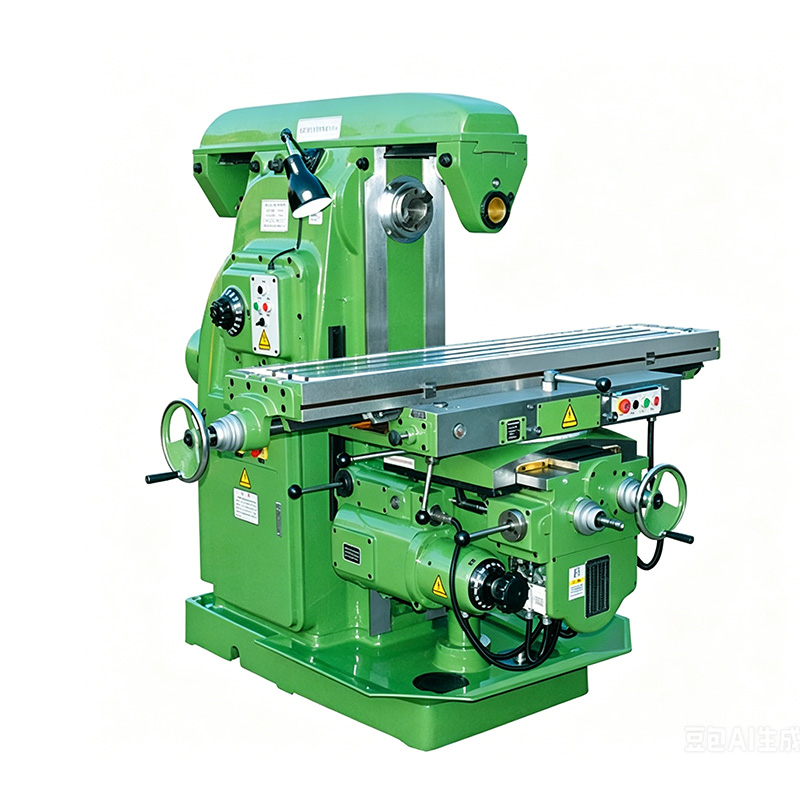

Product parameters
The horizontal rotation angle of the workbench is ± 45 °, expanding the machining range of the machine tool.rectangular guiding machine has good rigidity.The machine tool spindle bearings are tapered roller bearings. The spindle adopts a three-support structure. This system has good rigidity, strong load-bearing capacity, uses energy consumption braking for the spindle, which has a large braking torque and ensures rapid and reliable stopping.
The workbench's X, Y, and Z axes are all gear-driven, supporting automatic feed and manual operation.The worktable can move 900 millimeters in the X direction, expanding the machine's range of applications. The Y and Z-axis guideways adopt wide rectangular guideways, which are treated with super audio frequency induction hardening, precision grinding, and scraping processing to ensure the accuracy of the X, Y, and Z axis guideways.
Specifications | Units | X6140 |
Table size | mm | 1700x400 |
T-type slot numbers / width /space | mm | 3-18-90 |
Max. load of table | kg | 500 |
Longitudinal travel (manual/auto) | mm | 900/880 |
Transverse travel(manual/auto) | mm | 315/300 |
Vertical travel (manual/auto) | mm | 350/330 |
Cutting feed speed | mm/min | X.Y:23.5-1180.Z:8-394 |
Rapid feed speed | mm/min | X:2300.Y:2300.Z:770 |
Distance from table center to column guide way | mm | 255-570 |
Distance from spindle axis to table surface | mm | 30-380 |
Max. swivel angle of table | ±45° | |
Spindle speed step | steps | 18 |
Spindle speed range | rpm | 30-1500 |
Spindle motor power | KW | 7.5 |
Overall dimensions | mm | 2556x2159x1770 |
Machine weight | Kg | 3850 |
