Product parameters

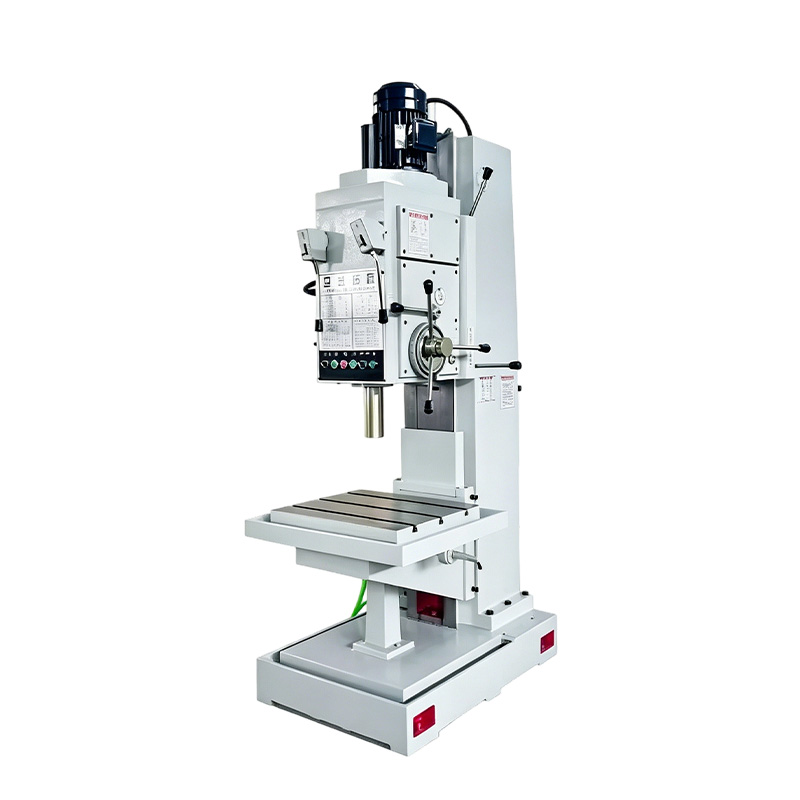

This vertical drilling machine is universal type machine tool. It is suitable for drilling, reaming, boring,tapping countersunk hole. Automatic reverse feed spindle tapping and micro feeding,
It has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Model number | Units | Z5140 |
Maximum drilling diameter | mm | 40 |
Maximum feed resistance | N | 16000 |
Maximum allowable torque of the spindle | N.m | 350 |
Spindle taper | - | MT4 |
Spindle stroke | mm | 250 |
Distance from the spindle end face to the worktable surface | mm | 750 |
Distance from the spindle center to the column surface | mm | 350 |
Spindle box stroke | mm | 200 |
Spindle speed range | rpm | 31.5-1400 |
Number of spindle speed levels | - | 12 |
Spindle feed range | mm/r | 0.056-1.8 |
Number of spindle feed levels | - | 9 |
Worktable size | mm | 560*480 |
Worktable stroke | mm | 300 |
Power of the main motor | kw | 3 |
Power of the cooling motor | kw | 0.09 |
Machine tool weight | kg | 1300 |
Overall dimensions (length × width × height) | mm | 1090*900*2530 |
