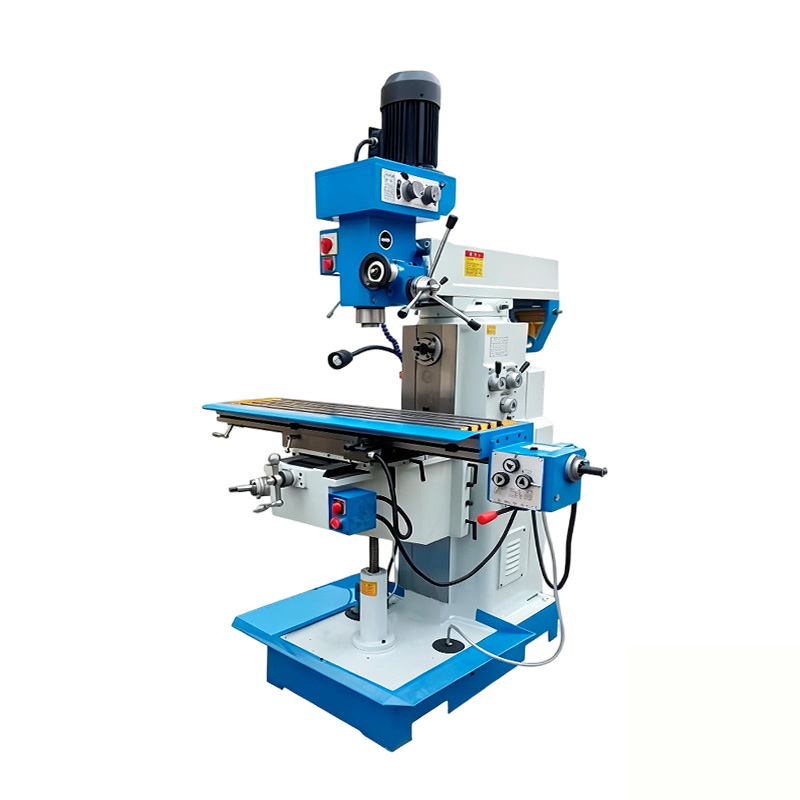

ZX6350 Universal Tool Milling Machine

Specification

Unit

ZX6350

Table Size

mm

1200×280, Optional:1500×280

Table Travel

mm

650×260, Optional:1000×280

Max. Drilling Diameter

mm

50

Max. End Milling Width

mm

100

Max. Vertical Milling Diameter

mm

25

Max. Boring Diameter

mm

120

Max. Tapping Diameter

/

M16

T-slot Quantity/Width/Pitch

mm

3/16/80

Distance from Spindle Nose to Table Surface

mm

80-460

Vertical Spindle Taper

/

MT4

Horizontal Spindle Taper

/

ISO40

Spindle Speed Range

r/min

Vertical:115-1750, Horizontal:40-1300

Spindle Travel

mm

120

Table Feed Speed

mm/min

X/Y:22-555, Z:300

Overall Dimensions

mm

1380×1580×2095

Spindle Motor Power

kW

Vertical:1.5/2.2, Horizontal:3

Machine Weight

kg

1350/1450
