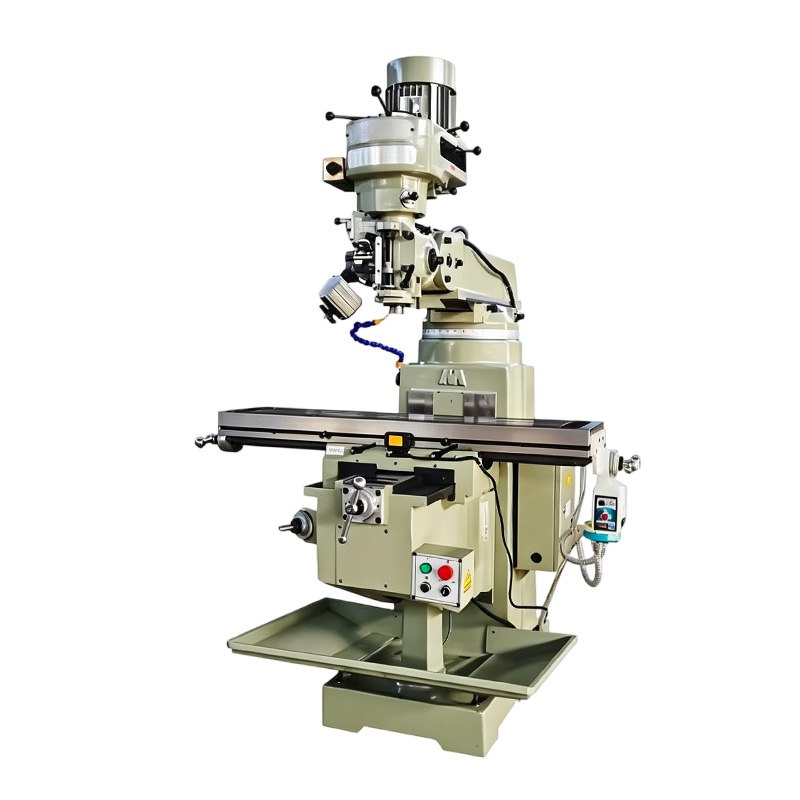

The main performance characteristics:
M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Specifications | Units | 4H |
Table size | mm | 1270*254 |
Longitudinal stroke of workbench (X) | mm | 780 |
Horizontal stroke of workbench (Y) | mm | 420 |
Vertical stroke (Z) | mm | 420 |
T slot(number-width-pitch) | mm | 3/16/18 |
Spindle taper | R8 | |
Spindle speed range | r/min | 75-4550 |
Spindle travel | mm | 127 |
Spindle feed range | mm | 0.04，0.08，0.15 |
Distance from spindle end face to worktable | mm | 100-650 |
Distance between spindle axis and table surface | mm | 80-400 |
Head rotation (left - right ) | ° | ±90° |
Head rotation (front - rear) | ° | ±45° |
Main motor power | kw | 3P/(2.2KW) |
Weight | kg | 1300 |
Overall dimension | mm | 1566*1650*2100 |
