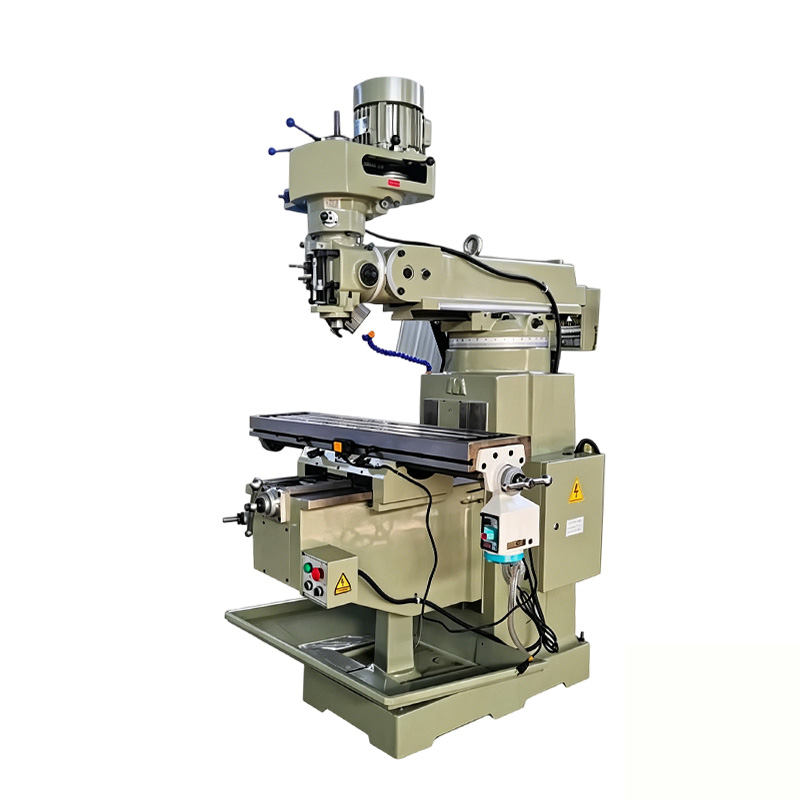

The main performance characteristics:
M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Machine Model | Units | 6H |
Spindle Taper | R8 | |
Spindle Speed | GPM(50HZ) | 80-5440GPM(50HZ) |
Spindle Head Rotation Angle (Left/Right) | o | 90o |
Spindle Tube Stroke | mm | 127 |
Spindle Tilt Angle (Back/Right) | o | 45o |
Spindle Automatic Feed Power (per revolution) | mm | 76/38/203 |
Table Area | mm | 320*1670 |
Left/Right Travel | mm | 1080 |
Back/Right Travel | mm | 410 |
Up/Down Travel | mm | 460 |
Number of T-Slots | 3 | |
Spindle Power | HP | 5 |
Machine Weight | KG | 2000 |
External Dimensions (Length Width Height) | mm | 2010*1780*2350 |
