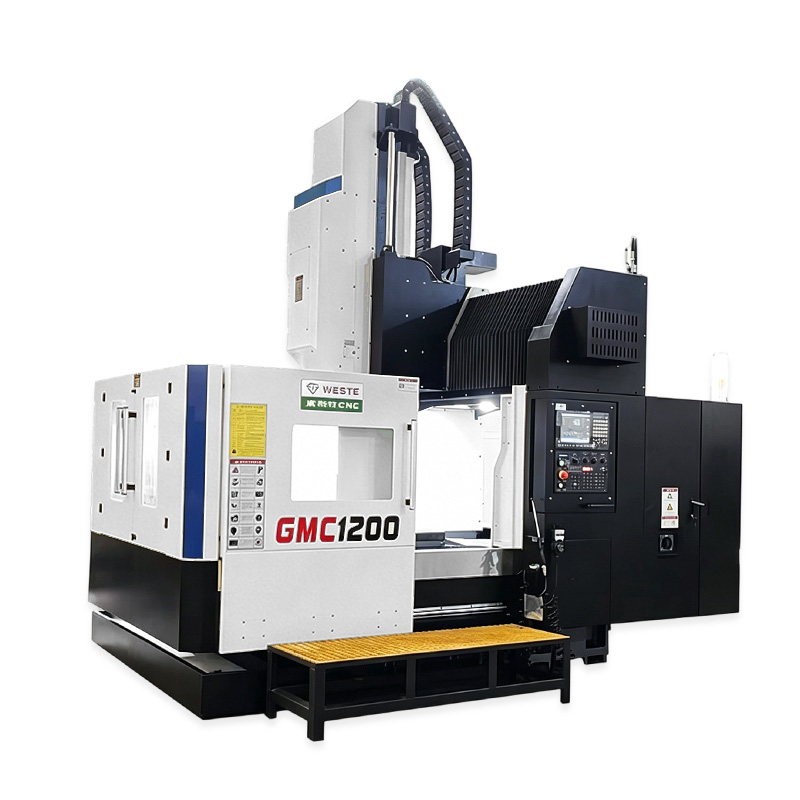

GMC1200 Gantry Machining Center

The gantry machining center applies fixed worktable and movable gantry design. It boasts a large working envelope and ultra-heavy load-bearing performance, perfectly adapting to oversized, ultra-long and heavy workpieces. The fixed table structure bears heavy workpieces stably without displacement, realizing one-time clamping processing for large molds, mechanical structural parts and equipment bases, which solves the size limitation of ordinary processing machines.

Model:
GMC1200
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Super High Structural Rigidity & Ultra Stability

Adopting heavy-duty double-column gantry fixed beam structure, the whole machine features integrated cast iron body and reinforced rib design. It effectively resists cutting vibration and deformation during long-time heavy-load machining. Compared with ordinary vertical machining centers, this gantry structure delivers stronger vibration absorption capacity, ensuring stable operation under high-intensity continuous cutting conditions. It maintains consistent machining accuracy without deflection even for long-stroke and large-scale processing tasks.

Specifications	unit	GMC1200
Table size	mm	1200x900
Max.table load	kg	1000
X axis travel	mm	1100
Y axis travel	mm	1100
Z axis travel	mm	500
Gantry width	mm	1200
Distance between spindle nose and table surface	mm	200-700
T slot	mm	5-22-110
Spindle taper		BT40 / BT50
Spindle taper		BT40 / BT50
Max. spindle speed	rpm	8000
Spindle motor	kw	11/15
X/Y/Z motor connection		direct
X/Y/Z motor connection		direct
X/Y/Z guide rail form		3 axis linear guide rail
X/Y/Z guide rail form		3 axis linear guide rail
Automatic tools changer		24 arm type
Automatic tools changer		24 arm type
X/Y/Z axis rapid traverse	M/min	20/20/15
Cutting feed speed	mm/min	10000
Position accuracy	mm	0.005
Repeat positioning accuracy	mm	0.003
Machine dimension	mm	3700X3000X3350
Machine weight	KG	9800
