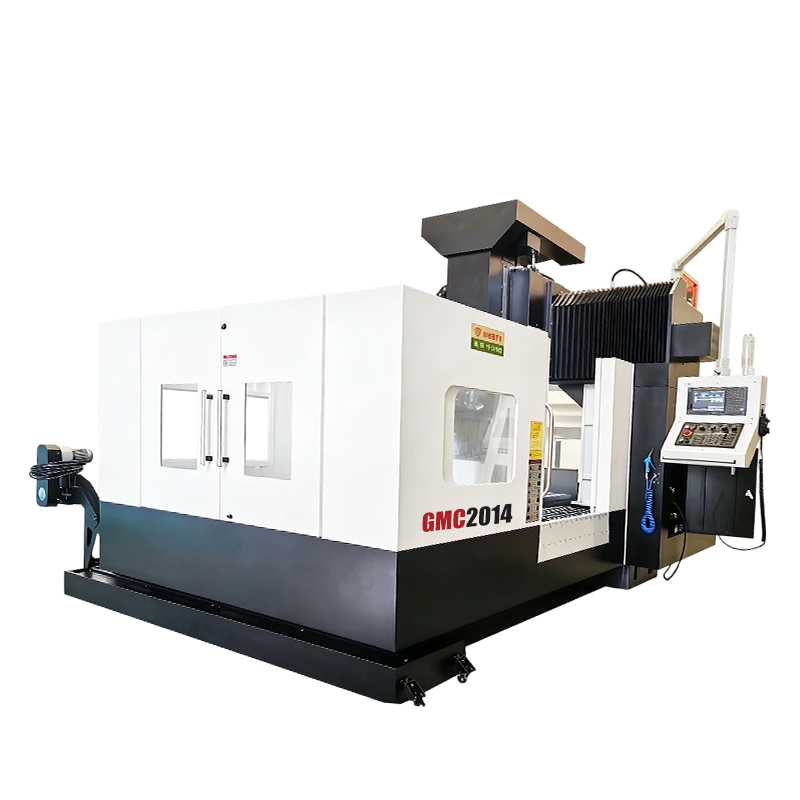

GMC2014
WESTE
| Quantity: | |
|---|---|
Super High Structural Rigidity & Ultra Stability
Adopting heavy-duty double-column gantry fixed beam structure, the whole machine features integrated cast iron body and reinforced rib design. It effectively resists cutting vibration and deformation during long-time heavy-load machining. Compared with ordinary vertical machining centers, this gantry structure delivers stronger vibration absorption capacity, ensuring stable operation under high-intensity continuous cutting conditions. It maintains consistent machining accuracy without deflection even for long-stroke and large-scale processing tasks.
Specifications | unit | GMC2014 |
Table size | mm | 2000x1000 |
Max.table load | kg | 3000 |
X axis travel | mm | 2000 |
Y axis travel | mm | 1400 |
Z axis travel | mm | 800 |
Gantry width | mm | 1400 |
Distance between spindle nose and table surface | mm | 120-920 |
T slot | mm | 7-22-140 |
Spindle taper | BT50-190 | |
Max. spindle speed | rpm | 6000 |
聽Spindle motor | kw | 15/18.5 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |
Automatic tools changer | 24 arm type | |
X/Y/Z axis rapid traverse | M/min | 15/15/12 |
Cutting feed speed | mm/min | 10000 |
Position accuracy | mm | 0.005 |
Repeat positioning accuracy | mm | 0.003 |
Machine dimension | mm | 6300x3800x4200 |
Machine weight | T | 16 |
