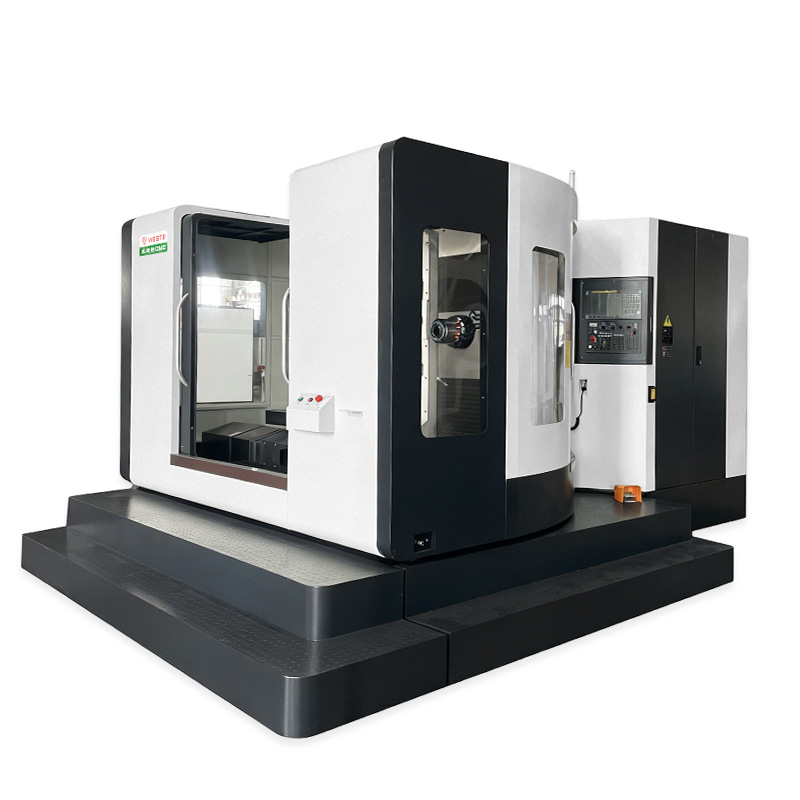

HMC1000
WESTE
| Quantity: | |
|---|---|
Excellent structural rigidity & stable cutting performance
Adopts horizontal layout and heavy-duty bed structure, with strong vibration resistance, suitable for heavy cutting and high-precision finishing.
Ideal for box-type & complex parts
Mainly used for processing box parts, shell parts, hydraulic components and mold bases, widely applied in automobile, aerospace and mechanical manufacturing industries.
Good chip removal condition
Horizontal spindle design makes iron filings fall off naturally smoothly, avoiding chip accumulation scratching workpiece surface and affecting machining accuracy.
High automation & easy batch production
Easy to match with rotary worktable, fixture and automatic tool changer, realizing automatic cycle processing, improving production consistency and batch processing capacity.
High machining precision & good finish
Stable motion accuracy and reliable transmission system ensure high dimensional accuracy and fine surface roughness of finished workpieces.
Convenient workpiece clamping & wide adaptability
Open operating space facilitates large-sized and irregular workpieces installation, flexible for multi-variety and medium-small batch production.
Model number | Units | HMC1000 |
Workbench Specifications | mm | 1000*600 |
X-axis travel | mm | 900 |
Y-axis travel | mm | 650 |
Z-axis travel | mm | 650 |
Distance from the spindle centerline to the workbench surface | mm | 0~650 |
Distance from the nose of the spindle to the center of the workbench | mm | 100~750 |
Roller screw for X, Y, and Z axes | mm | Φ40 |
Cutting feed rates for X, Y, and Z axes | mm/min | 1～4000 |
Fast feed speed for X and Y axes | m/min | 24 |
Fast feed speed for Z axis | m/min | 22 |
Spindle speed range | r/min | 50～8000 |
Spindle specification | BT40 | |
Numerical Control System | Taiwan New Generation 21MA | |
Spindle motor | KW | 11/15 |
X and Y servo motors | 18N.m 2.9KW | |
Z servo motor | 18N.m 2.9KW | |
Disc tool magazine | T | 24 |
Positioning accuracy | mm | ±0.01 |
Repeatability positioning accuracy | mm | ±0.006 |
Source gas pressure used | MPa | 0.6-0.8 |
Machine tool contour dimensions (L×W×H) | mm | 3000x2800x3200 |
Machine weight | kg | 8000 |
