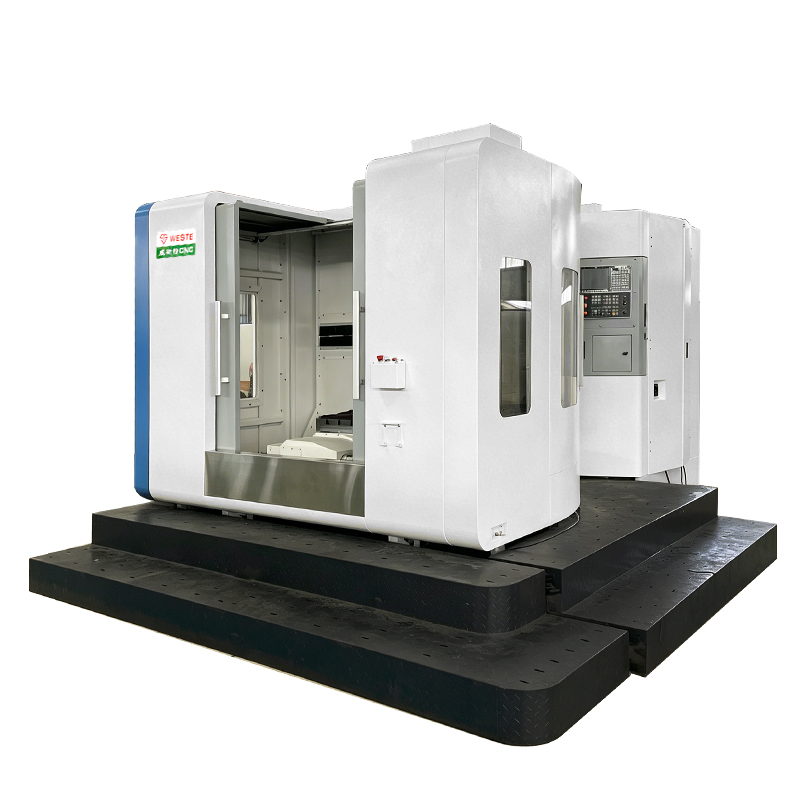

HMC630
WESTE
| Quantity: | |
|---|---|
Excellent structural rigidity & stable cutting performance
Adopts horizontal layout and heavy-duty bed structure, with strong vibration resistance, suitable for heavy cutting and high-precision finishing.
Ideal for box-type & complex parts
Mainly used for processing box parts, shell parts, hydraulic components and mold bases, widely applied in automobile, aerospace and mechanical manufacturing industries.
Good chip removal condition
Horizontal spindle design makes iron filings fall off naturally smoothly, avoiding chip accumulation scratching workpiece surface and affecting machining accuracy.
High automation & easy batch production
Easy to match with rotary worktable, fixture and automatic tool changer, realizing automatic cycle processing, improving production consistency and batch processing capacity.
High machining precision & good finish
Stable motion accuracy and reliable transmission system ensure high dimensional accuracy and fine surface roughness of finished workpieces.
Convenient workpiece clamping & wide adaptability
Open operating space facilitates large-sized and irregular workpieces installation, flexible for multi-variety and medium-small batch production.
Units | Specifications | HMC630 |
mm | Table size | 630×630 |
mm | X-axis travel | 800 |
mm | Y-axis travel | 650 |
mm | Z-axis travel | 750 |
mm | Spindle nose to table | 220-970 |
mm | Spindle center to table | |
mm/min | Rapid traverse (X/Y/Z) | 15000/10000/10000 |
mm/min | Feed rate（X/Y） | 1-5000 |
Kg | Max. load of worktable | 1000 |
mm | T-slot (slot number×width×pitch) | 5-22-125 |
rpm | Spindle speed | 2400/6000 |
kw | Spindle power | 11/15 |
Spindle taper | BT50 | |
ATC | 24 | |
Magazine type | Mechanical hand knife | |
mm | Maximum tool diameter | Φ127/Φ178 |
mm | Maximum tool length | 300 |
Kg | Maximum tool weigh | 15 |
s | Tool change time | 3 |
mm | Positioning accuracy | ±0.005 |
mm | Repeat accuracy | ±0.002 |
kg | Machine weight | 11000 |
mm | Dimensions | 3200*3500*2700 |
