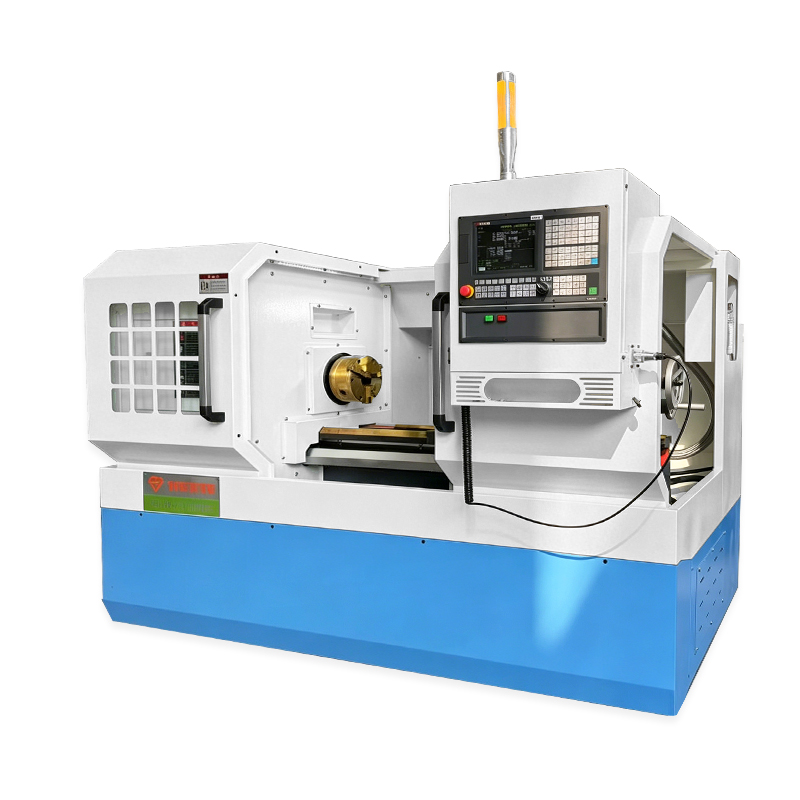

CK6140
WESTE
| Quantity: | |
|---|---|
CK CNC lathes deliver excellent production efficiency and high automation performance. The whole machining process is automatically completed according to pre-programmed numerical instructions, including tool feeding, cutting and tool retracting.
It supports one-time clamping and multi-process integrated machining, which greatly simplifies intermediate processing procedures and reduces auxiliary time such as repeated clamping and tool setting.
With adjustable spindle speed and feed rate, the lathe can adopt optimal cutting parameters for different materials, realizing high-efficiency cutting and greatly shortening the production cycle, suitable for mass industrial production.
SPECIFICATIONS | Units | CK6140 |
Swing over bed | mm | 400 |
Swing over cross slide | mm | 200 |
Distance between centers | mm | 750/1000/1500/2000 |
Spindle bore | mm | 52/82 mm |
Spindle bore taper | - | MT6 |
Spindle nose type | - | C6 |
Spindle speed steps | - | Manual 2 steps |
Spindle speed range | rpm | L:70-700 H:160-1600 |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 20 x 20 |
X axis travel | mm | 240 |
Z axis travel | mm | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 8000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT4 |
Feeding motor torque on z axis | - | 7.5/10/15 N.m |
Feeding motor torque on x axis | - | 5N.m |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 5.5 |
Coolant pump motor | kw | 0.125 |
Weight for 1000 | kg | 1800 |
Weight for 1500 | kg | 2000 |
Weight for 2000 | kg | 2200 |
Dimension for 1000 | mm | 2600x1600x1700 |
Dimension for 1500 | mm | 3000x1600x1700 |
Dimension for 2000 | mm | 3500x1600x1700 |
