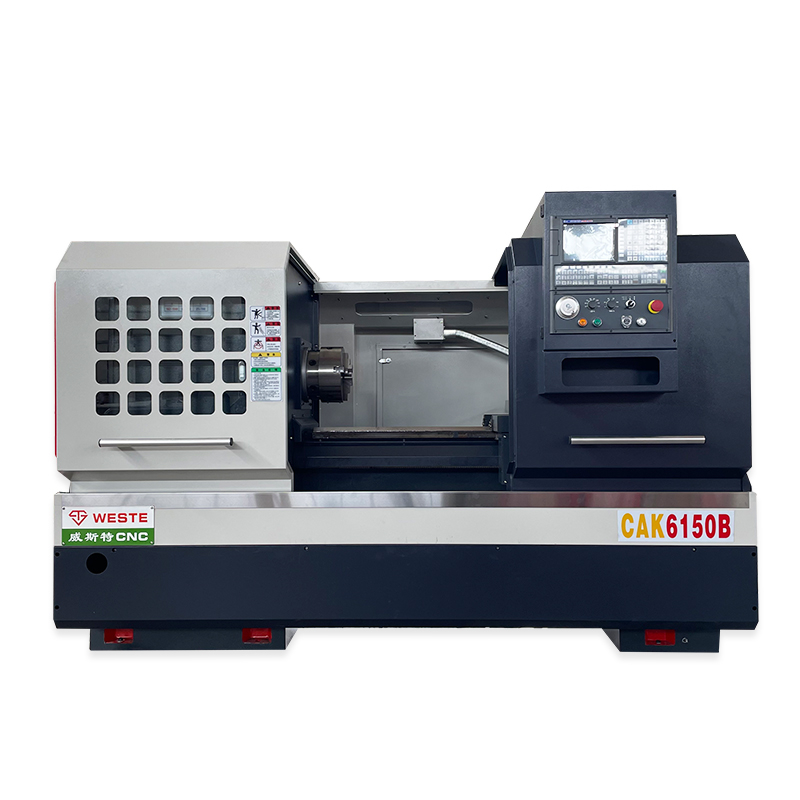

CK6150 Flat Bed CNC Lathe

The CK series CNC lathes feature stable processing performance and can efficiently complete the machining of shafts, discs, as well as the internal and external round surfaces, conical surfaces, circular arcs, end faces, grooves, and various types of thread cutting for various metal materials.

Model:
CK6150
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

CK CNC lathes deliver excellent production efficiency and high automation performance. The whole machining process is automatically completed according to pre-programmed numerical instructions, including tool feeding, cutting and tool retracting.

It supports one-time clamping and multi-process integrated machining, which greatly simplifies intermediate processing procedures and reduces auxiliary time such as repeated clamping and tool setting.

With adjustable spindle speed and feed rate, the lathe can adopt optimal cutting parameters for different materials, realizing high-efficiency cutting and greatly shortening the production cycle, suitable for mass industrial production.

SPECIFICATIONS		Units	CK6150
Maximum turning length		mm	1000
The maximum turning diameter of the bed.		mm	500
Maximum turning diameter on skateboard		mm	280（300）
Width of bed guide rail		mm	400
Maximum workpiece length		mm	1000
Spindle end code		--	ISO(GB)C6
Spindle front tapered hole		mm	MT6
Main spindle through-hole diameter		mm	52
Spindle speed range.		r/min	100-1600
Center height	Distance from bed	mm	250
	Distance from the ground	mm	930
X-axis fast movement speed.		m/min	10
Z-axis fast movement speed·		m/min	5
X-axis travel.		mm	260
Z-axis travel.		mm	850
Minimum setting unit for X-axis feed		mm	0.001
Minimum setting unit for z-axis feed		mm	0.001
X-axis/Z-axis positioning accuracy·		mm	0.03/0.045
X/Zaxis repeated positioning accuracy		mm	0.012/0.02
Tail socket diameter·		mm	75
Tail seat sleeve stroke·		mm	150
Blade size	Outer circle	mm	25*25
	Inner orifice	mm	32
Machine tool load-bearing capacity		kg	300
Weight for 1000		kg	3000
Weight for 1500		kg	3200
Weight for 2000		kg	3400
Dimension for 1000		mm	275016802000
Dimension for 1500		mm	330016802000
Dimension for 2000		mm	380016802000
