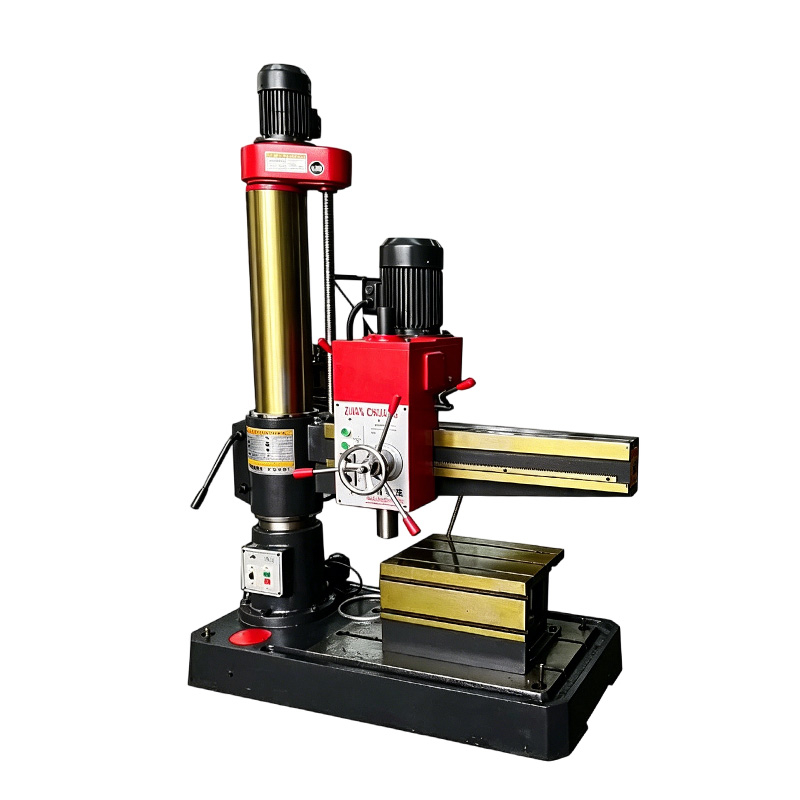

Z3032 Radial Drilling Machine

Suitable for processing plates, shells, shafts, etc. Batch processing parts with high precision, multiple processes and Complex shape.

Model:
Z3032
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product parameters

The radial drilling machine is suitable for machining,And it can asapt to the processingrequirement from rough. Scope of application: drilling, reaming, reaming, tapping, etc Multiprogram processing.. It can effectively improve the processing efficiency.

Specification	Unit	Z3032×10
Max. drilling diameter (steel)	mm	32
Column diameter	mm	200
Spindle axis to column surface distance (min/max)	mm	330 / 1060
Spindle nose to base working surface distance	mm	330–1060
Headstock horizontal travel	mm	710
Radial arm vertical lift travel	mm	730
Spindle travel	mm	120
Spindle taper	–	MT4 (Morse Taper 4)
Spindle speed range	r/min	108, 162, 262, 398, 665, 1000
Spindle feed range	mm/r	0.10, 0.16, 0.25
Max. spindle feed force	N	5300
Radial arm swing angle	°	±180
Main motor power	kW	2.2
Elevating motor power	kW	0.75
Machine weight	kg	≈1000
Overall dimensions (L×W×H)	mm	1400×710×1880
