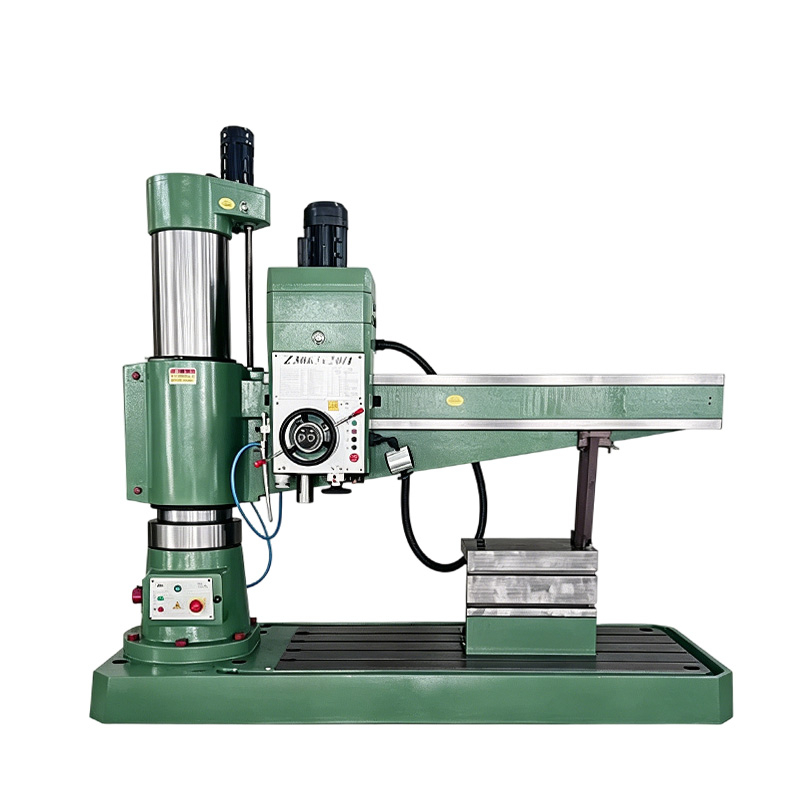

Z3063 Radial Drilling Machine

Suitable for processing plates, shells, shafts, etc. Batch processing parts with high precision, multiple processes and Complex shape.

Model:
Z3063
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product parameters

The radial drilling machine is suitable for machining,And it can asapt to the processingrequirement from rough. Scope of application: drilling, reaming, reaming, tapping, etc Multiprogram processing.. It can effectively improve the processing efficiency.

Specification	Unit	Z3063×20
Max. Drilling Diameter(Steel)	mm	63
Spindle Center to Column Distance(Min/Max)	mm	400/2000
Spindle Travel	mm	315
Radial Arm Lifting Stroke	mm	800
Spindle Taper		MT6
Spindle Speed Range	r/min	20~1600
Spindle Speed Steps		16
Spindle Feed Range	mm/r	0.04~3.2
Spindle Feed Steps		16
Max. Feeding Force	kN	20
Radial Arm Rotation Angle	°	360
Main Motor Power	kW	7.5
Arm Lifting Motor Power	kW	2.2
Cooling Pump Motor Power	kW	0.125
Overall Dimension(L×W×H)	mm	3100×1250×3150
Net Weight	kg	Approx.4800
