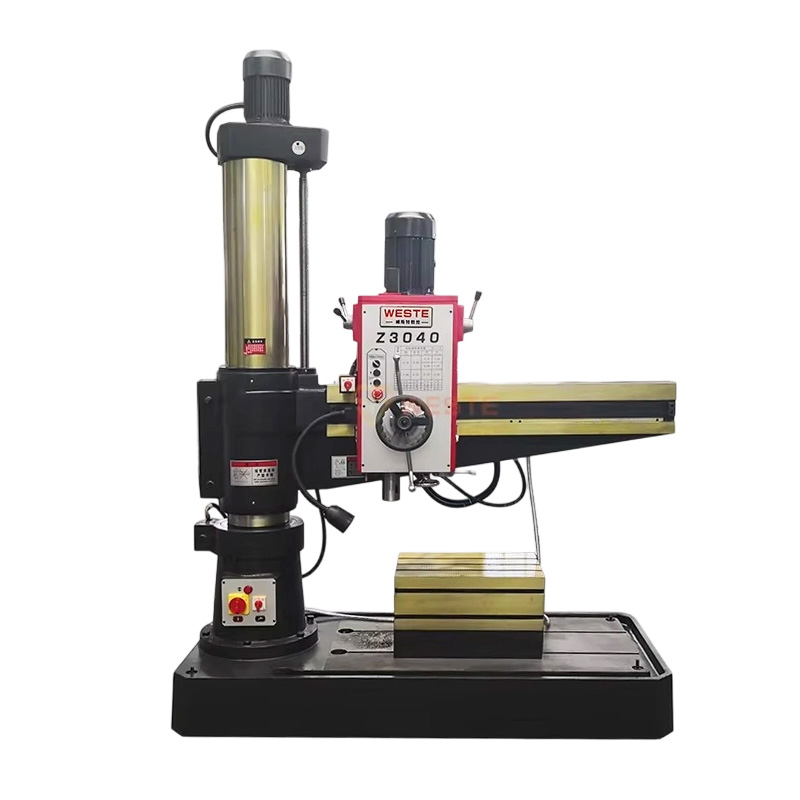

Z3040 Radial Drilling Machine

Suitable for processing plates, shells, shafts, etc. Batch processing parts with high precision, multiple processes and Complex shape.

Model:
Z3040
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product parameters

The radial drilling machine is suitable for machining,And it can asapt to the processingrequirement from rough. Scope of application: drilling, reaming, reaming, tapping, etc Multiprogram processing.. It can effectively improve the processing efficiency.

Specification	Unit	Z3040×13
Max. drilling diameter (steel)	mm	40
Spindle center to column surface distance (min/max)	mm	360 / 1300
Spindle nose to table surface distance	mm	260 – 1300
Headstock horizontal travel	mm	1000
Radial arm vertical lift travel	mm	680
Spindle travel	mm	200
Spindle taper	–	MT4 (Morse Taper 4)
Spindle speed range	r/min	75, 130, 240, 380, 660, 1200
Number of spindle speed steps	–	6
Spindle feed range	mm/r	0.10, 0.16, 0.25
Number of spindle feed steps	–	3
Max. spindle feed force	N	12000
Radial arm swing angle	°	360
Main motor power	kW	2.2
Elevating motor power	kW	0.75
Machine weight	kg	≈1500
Overall dimensions (L×W×H)	mm	1800×810×2300
