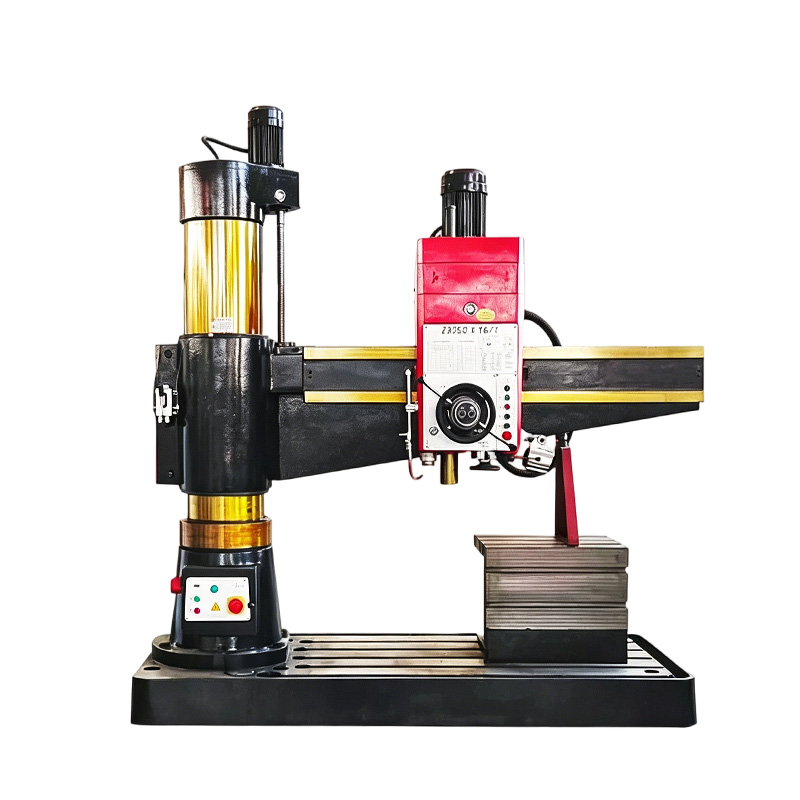

Z3050 Radial Drilling Machine

Suitable for processing plates, shells, shafts, etc. Batch processing parts with high precision, multiple processes and Complex shape.

Model:
Z3050
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product parameters

The radial drilling machine is suitable for machining,And it can asapt to the processingrequirement from rough. Scope of application: drilling, reaming, reaming, tapping, etc Multiprogram processing.. It can effectively improve the processing efficiency.

Specification	Unit	Z3050×16
Max. Drilling Diameter(Steel)	mm	50
Spindle Center to Column Distance(Min/Max)	mm	350/1600
Spindle Travel	mm	315
Radial Arm Lifting Stroke	mm	800
Spindle Taper		MT5
Spindle Speed Range	r/min	25~2000
Spindle Speed Steps		16
Spindle Feed Range	mm/r	0.04~3.2
Spindle Feed Steps		16
Max. Feeding Force	kN	16
Radial Arm Rotation Angle	°	360
Main Motor Power	kW	4
Arm Lifting Motor Power	kW	1.5
Cooling Pump Motor Power	kW	0.125
Overall Dimension(L×W×H)	mm	2500×1050×2800
