High Precision Grinding Performance
Spindle supported by P4‑grade precision rolling bearings for smooth, stable rotation and minimal runout.
Precision flat‑V dual guideway design ensures high rigidity and consistent accuracy during long‑term operation.Heavy‑duty cast iron bed and reinforced single‑column frame absorb vibration, guaranteeing structural stability and prolonged service life.

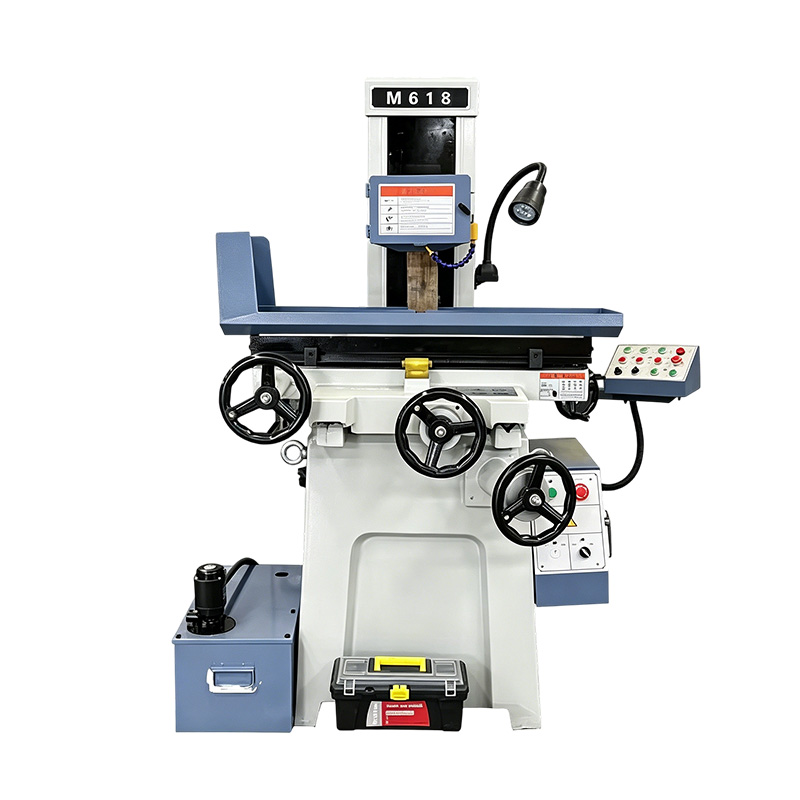

Technical Parameters | Unit | M618 | |
Table maximum cutting area((L X Wx H ) | mm | 500*190*335 | |
Working table movement | Max Grinding Length | mm | 500 |
Max. Grinding width | mm | 190 | |
Distance From Table Surface To Spindle Center | mm | 335 | |
Slide way | V-type rall with steel-ball | ||
Maximum work load | kg | 200 | |
Table size | mm | 460*180 | |
Number of T -Slot | mm*n | 14*1 | |
Table speed | m/min | 3/23 | |
Front and rear wheel feed | mm | 0 02/Graduation 2.5/revolution | |
On the hand wheel feed | mm | 0.01/Graduation 1.25/revolution | |
Wheel Size (diaXwidth X bore) | mm | 180*13*31.75 | |
Spindle speed | 50HZ | 2800 | |
Variable frequency motor (matching) | rpm | 0--6000 | |
Spindle motor | Kw | 1.1 | |
Cooling pump | Kw | 0.04 | |
Packing Size (LxWxH) | mm | 1240*1080*1800 | |
Cross,Net | T | 0.75,0.65 | |
