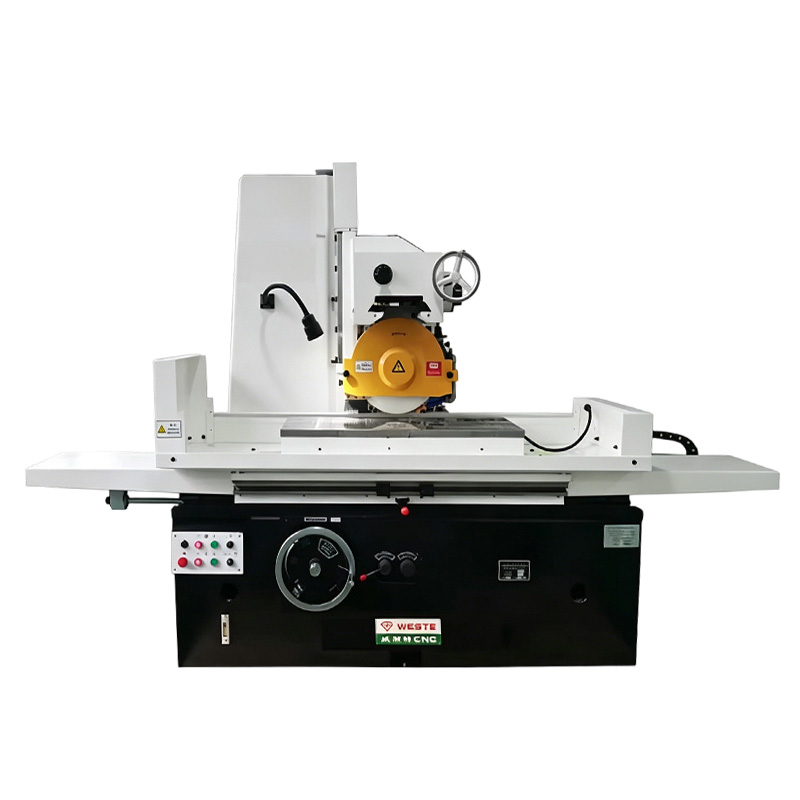

M7140 Surface Grinding Machine

Surface Grinding Machine is a high-precision finishing process for flat workpieces. It uses high-speed abrasive wheels to remove tiny surface materials, achieving micron-level accuracy with excellent flatness and parallelism.

Model:
M7160
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Machining Characteristics of Surface Grinding Machine

● High machining precision and fine surface roughness

● Able to process hard and brittle workpieces

● Good geometric shape and dimensional accuracy

● Suitable for flat surface finishing processing

● Small cutting force and low workpiece deformation

● Stable processing quality and good consistency

● Capable of batch and high-precision production

Description		Units	M7140x1000	M7140x1600	M7140x2000
Size of work table(L x W x H)		mm	1000x400	1600x400	2000x400
Max. Longitudinal movement of worktable		mm	1100	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	570	570	570
Max. Cross movement of grinding herd		mm	450	450	450
Max. Vertical movement of grinding head		mm	400	400	400
Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01	0.01	0.01
Vertical movement of the grinding head by hand wheel	Each turn	mm	1	1	1
Rapid lifting motor	Power	KW	0.37	0.37	0.37
Rapid lifting motor	Speed	R/min	1440	1440	1440
Abrasive wheel dim (L x D x W)		mm	350x127x40	350x127x40	350x127x40
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		KW	9	10	12
Power of spindle motor		KW	5.5	5.5	5.5
Power of oil pump motor		KW	3	4	5.5
Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
Package(L x W x H)		mm	2800x1750x2350	4500x2000x2350	5500x2000x2350
Net weight		Kg	4000	4100	4200
