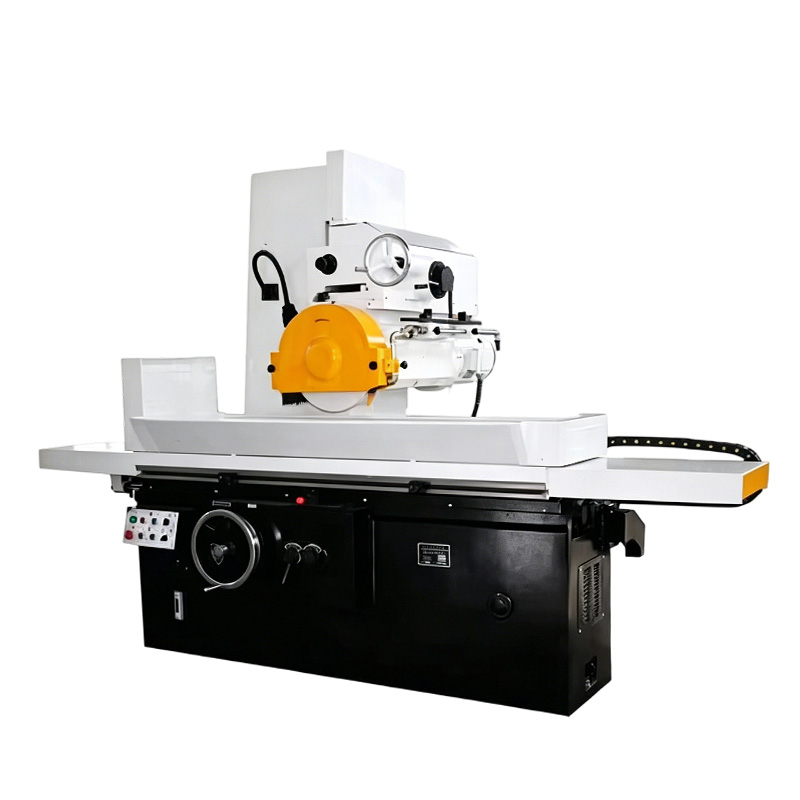

M7160 Surface Grinding Machine

Surface Grinding Machine is a high-precision finishing process for flat workpieces. It uses high-speed abrasive wheels to remove tiny surface materials, achieving micron-level accuracy with excellent flatness and parallelism.

Model:
M7160
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

Machining Characteristics of Surface Grinding Machine

● High machining precision and fine surface roughness

● Able to process hard and brittle workpieces

● Good geometric shape and dimensional accuracy

● Suitable for flat surface finishing processing

● Small cutting force and low workpiece deformation

● Stable processing quality and good consistency

● Capable of batch and high-precision production

Model Description .	Unit	M7160x1000	M7160x1600	M7160x2200
Max distance from table surface to spindle center	mm	600	600	600
Max.longitudinal travel	mm	1100	1700	2300
Min. longitudinal travel	mm	200	200	200
Max size to be ground	mm	600x1000x400	600x1600x400	600x2200x400
Max load capacity	kg	850	1150	1500
Table longitudinal speed	m/min	3/27	3/27	3/27
TableT slot No*width	Noxmm	3x22	3x22	3x22
Wheelhead cross moving - Continuous feeding speed	m/min	0.5-4.5	0.5-4.5	0.5-4.5
Wheelhead cross moving - Feed travel	mm/t	3/30	3/30	3/30
Wheelhead cross moving- Per div feed of handwheel	mm	0.02	0.02	0.02
Wheel head vertical moving - Rapid speed	mm/min	400	400	400
Wheel head vertical moving - Per Rev. feed of hand wheel	mm/gra	0.005	0.005	0.005
Wheel head vertical moving - Per Rev. feed of ha nd wheel	mm	0.645	0.645	0.645
Wheelhead motor -Power	kw	7.5	7.5	7.5
Wheelhead motor - Speed	rpm	1440	1440	1440
Total rated power	kw	13.75	13.75	13.75
Grinding wheel size（ODx WxiD）	mm	400x50x203	400x50x203	400x50x203
Machine tool weight	kg	5000	6900	8100
