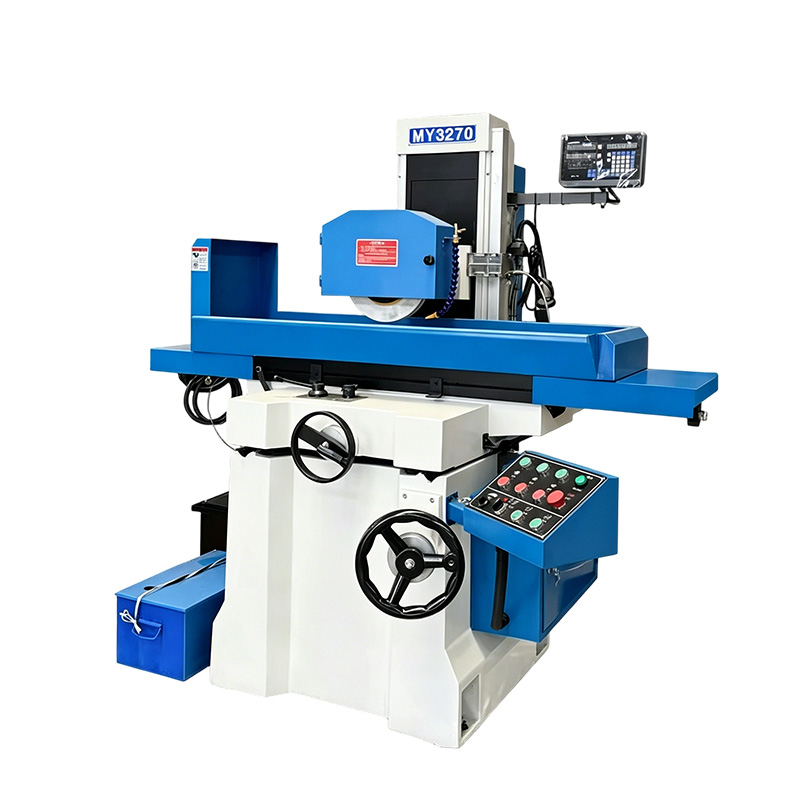

High Precision Grinding Performance
Spindle supported by P4‑grade precision rolling bearings for smooth, stable rotation and minimal runout.
Precision flat‑V dual guideway design ensures high rigidity and consistent accuracy during long‑term operation.Heavy‑duty cast iron bed and reinforced single‑column frame absorb vibration, guaranteeing structural stability and prolonged service life.
SPECIFICATIONS | Units | MY3270 |
Tabie face dimensions | LxW(mm) | 700x300 |
Lonitudinal travel | mm | 720 |
Table cross travel | mm | 340 |
Grinding head vertical movement distance | mm | 500 |
Accuracy of vertical feed hand wheel | mm | 0.01mm/Grid 2mm/Circle |
Precision infeed handwheel | mm | 0.02mm/Grid 4mm/Circle |
Table T-slot | mm | 14x1 |
Grinding spindle speed | r/min | 1450 |
Grinding motor power | kw | 4 |
Cooling pump motor power | kw | 0.04 |
Frequency | Hz | 50 |
Wheel size | mm | 350x25x75 |
Net weiiiight | kg | 1500 |
Overall dimensions of machine | T(LxWxH) | 1.80x1.65x1.90 |
