High Precision Grinding Performance
Spindle supported by P4‑grade precision rolling bearings for smooth, stable rotation and minimal runout.
Precision flat‑V dual guideway design ensures high rigidity and consistent accuracy during long‑term operation.Heavy‑duty cast iron bed and reinforced single‑column frame absorb vibration, guaranteeing structural stability and prolonged service life.

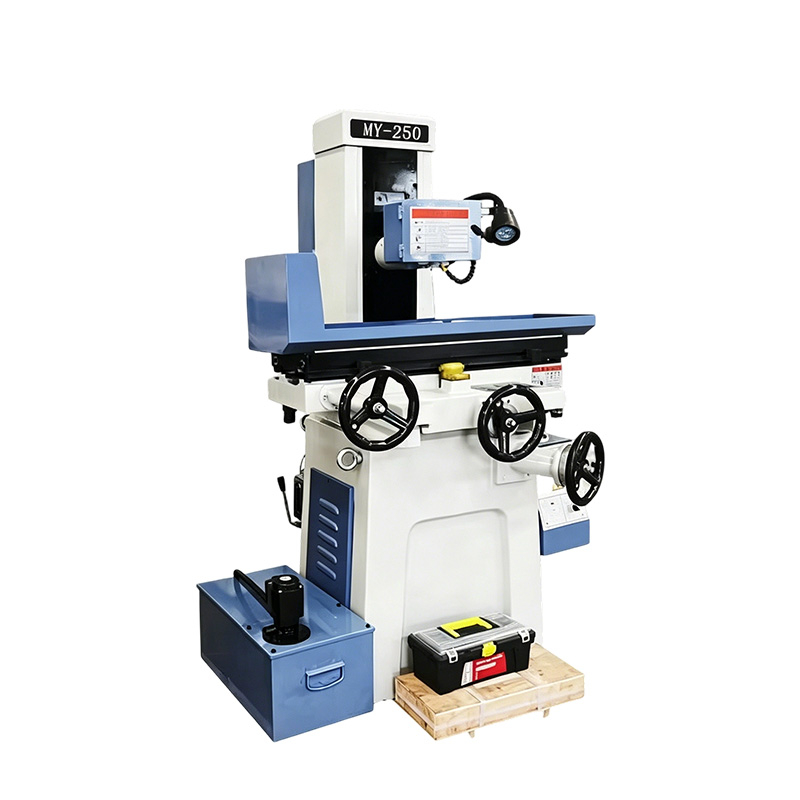

SPECIFICATIONS | Unit | MY250 |
Working Table Size (L×W) | mm | 540 × 250 |
Max. Grinding Length | mm | 550 |
Max. Grinding Width | mm | 260 |
Table Travel (X, Longitudinal) | mm | 540 |
Table Travel (Y, Cross) | mm | 250 |
Wheel Center to Table Distance | mm | 470 |
Table T-slot | mm × n | 14 × 1 |
Table Speed | m/min | 3–25 |
Grinding Wheel Size (OD×W×ID) | mm | 200 × 20 × 31.75 |
Spindle Speed | rpm | 2850 |
Spindle Motor Power | kW | 1.5 |
Total Motor Power | kW | 3.04 |
Hydraulic Working Pressure | MPa | 3 |
Surface Roughness | μm | Ra 0.32 |
Parallelism (300 mm length) | mm | 0.005 |
Net Weight | kg | 880–1050 |
Machine Dimension (L×W×H) | mm | 1680 × 1140 × 1760 |
Voltage | V | 220 / 380 (50 Hz) |
Warranty | Year | 1 |
