XH7126
WESTE
| Quantity: | |
|---|---|

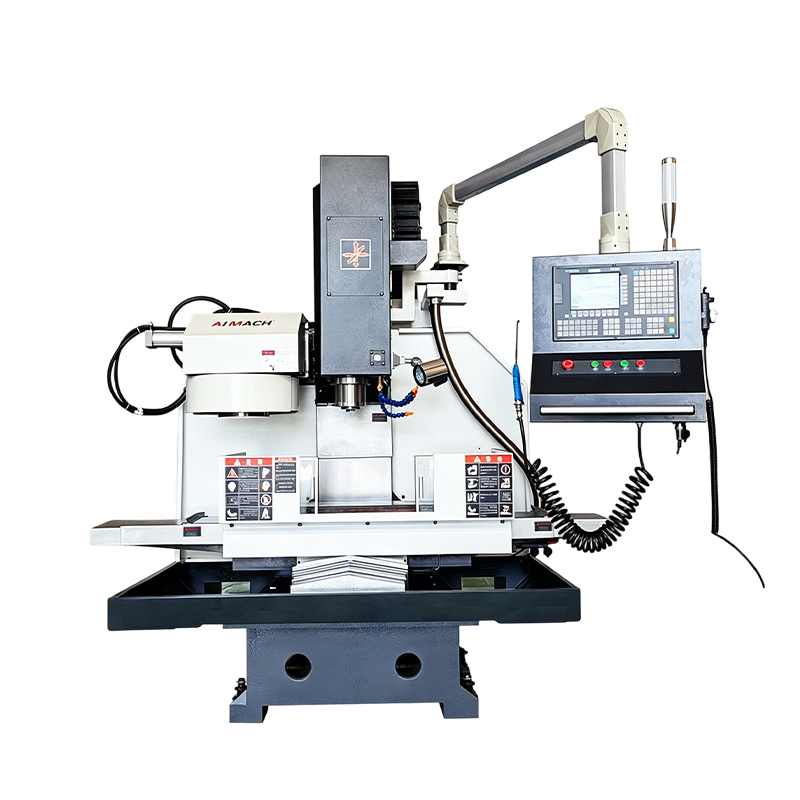

The XH7136 vertical CNC milling machine features a high-strength cast iron body, with a stable and shock-resistant structure. It is equipped with a BT40 high-stiffness spindle, ensuring smooth operation and sufficient torque. The three axes are equipped with precise pre-tightened ball screws, providing precise positioning and smooth feed, making it suitable for processing precision workpieces. It is standardly equipped with an intelligent CNC system and a conical tool magazine, enabling automatic tool changing and achieving high processing efficiency.
Specifications | unit | XH7126 |
Table size | mm | 800/260 |
Max.table load | kg | 200 |
X axis travel | mm | 500 |
Y axis travel | mm | 350 |
Z axis travel | mm | 400 |
Distance between spindle noseand table surface | mm | 80-480 |
T slot | mm | 3-16-75 |
Spindle taper | BT40 | |
Max. spindle speed | rpm | 8000-24000 |
Main motor power | kw | 3.7-5.5 |
X/Y/Z axis servo motor torque | N.M | 2010/10/15 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guiderail | |
Automatic tools changer | 12T/16T | |
X/Y/Z axis rapid traverse | M/min | 30/30/24 |
Cutting feed speed | mm/min | 1-7000 |
Position accuracy | mm | 0.005 |
Repeat positioning accuracy | mm | 0.003 |
Machine dimension | mm | 2100/1950/2400 |
Machine weight | kg | 1850 |
