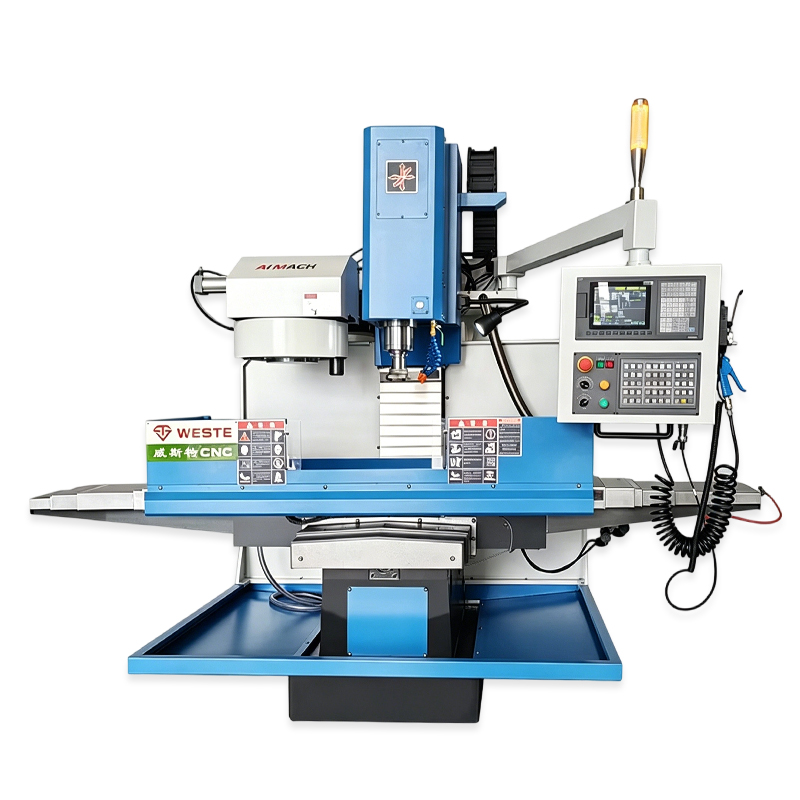

XK7136 CNC Milling Machine

The CNC milling machine has a high degree of automation, with flexible three-axis linkage control. It offers high processing accuracy and small dimensional errors, enabling it to effortlessly complete various types of processing such as complex contours, cavities, and hole systems.

Model:
XK7136
Brand:
WESTE

Quantity:
Availability:





Inquire Add to Basket

Product Description

The XK7136 CNC milling machine has stable processing accuracy, smooth three-axis linkage operation, and can efficiently complete complex processes such as planar, cavity, hole system, and inclined surface processing. It has sufficient cutting rigidity and flexible feed speed adjustment, capable of handling both rough and fine processing, and the surface finish of the processed workpieces is excellent.

Specifications	Unit	XK7136
Table size	mm	800×360
Max load of worktable	kg	500
X axis travel	mm	600
Y axis travel	mm	360
Z axis travel	mm	400
Spindle taper	-	BT40
Max spindle speed	r/min	8000
Spindle motor power	kW	5.5/7.5
Rapid feed speed(X/Y/Z)	m/min	2008/8/6
Cutting feed speed	mm/min	1~6000
T-slot number/specification	mm	3/14
Positioning accuracy	mm	±0.01
Repeat positioning accuracy	mm	±0.005
Tool magazine capacity	Pcs	16
Tool change time	s	3
Overall dimension	mm	2200×1800×2300
Machine weight	kg	3200
Matched control system	-	FANUC/SIEMENS/GSK
