XK5032
WESTE
| Quantity: | |
|---|---|

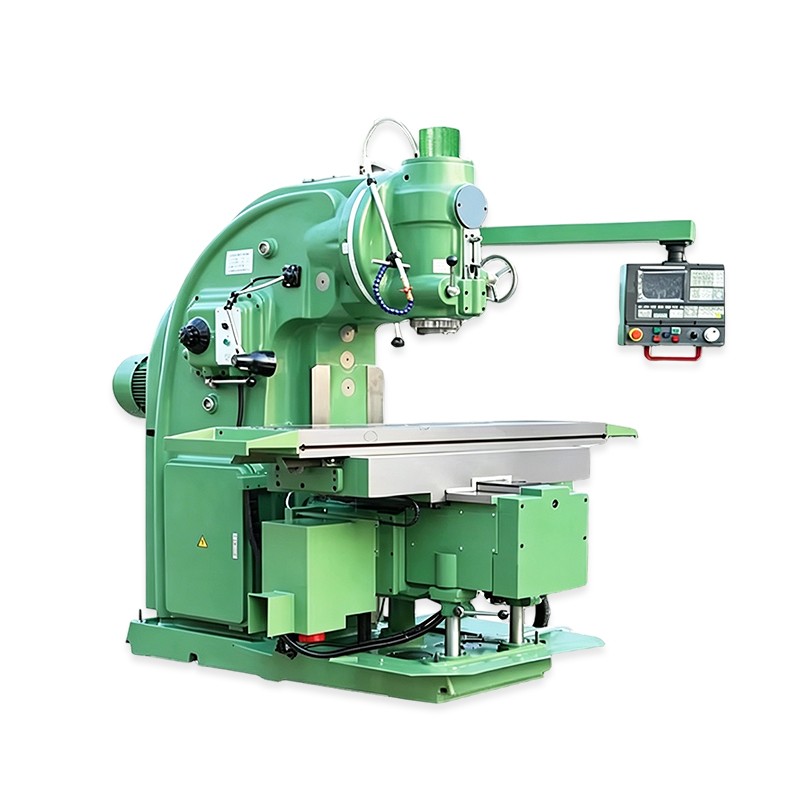

The XK5040 vertical CNC milling machine has ample travel, a solid frame structure, excellent heavy cutting performance, and precise and smooth three-axis movement. It can efficiently complete various processes such as plane milling, cavity processing, drilling and tapping, contour cutting, etc. It is suitable for both rough and fine processing, and the formed accuracy of the workpiece is high, with good surface quality. The operation and debugging are convenient, the processing adaptability is strong, and it is suitable for batch precision processing of various workpieces such as molds, mechanical parts, and hardware components. It is practical, durable, and has outstanding production efficiency.
Specifications | Units | XK5032 |
Table size | mm | 1325x320 |
Table travel(X.Y.Z) | mm | 800x310x350 |
T-type slot (numbers / width /space) | mm | 3-18-70 |
Max. load working table | kg | 320 |
Distance from spindle nose to table | mm | 35-385 |
Rapid feed speed(X.Y.Z) | mm/min | 6000/6000/3000 |
Feed speed X.Y(Z) | mm/min | 6-3200(3-1600) |
Spindle travel | mm | 70 |
Spindle taper | ISO50(7:24) | |
Max. swivel angle of vertical milling head | ° | ±45° |
Spindle speed range | rpm | 30-1500(18 steps) |
Spindle motor power | KW | 7.5 |
Longitudinal, transverse feed motor torque(X.Y) | N. m | 10 |
Vertical feed motor torque (Z) | N. m | 18 |
Max. spindle torque | N. m | 1000 |
Overall dimensions(Lx W x H) | mm | 2040x1800x1910 |
Machine weight | Kg | 2900 |
