XK6140
WESTE
| Quantity: | |
|---|---|

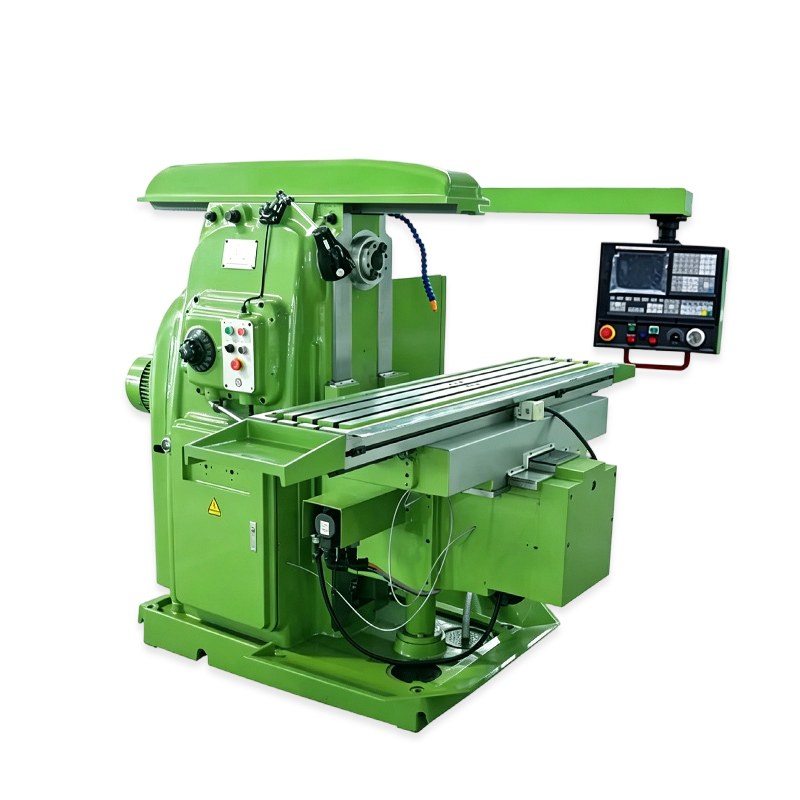

The XK6140 horizontal CNC milling machine features strong rigidity and high cutting load-bearing capacity. It offers a wide horizontal processing field, making it suitable for multi-directional milling, boring, and slotting of box-type, shell-type, and long-shaped workpieces. The three-axis linkage operation is stable, with high positioning accuracy. It can complete multiple compound processes in one go, resulting in high processing efficiency and good product consistency. It is suitable for batch precision processing of large and medium-sized components such as heavy machinery, transmission bodies, and valve bodies. It has strong durability and is suitable for large-scale heavy cutting production operations.
ITEM | UNIT | XK6140 |
table size | mm | 1700*400 |
T-slots (N/W/D) | 3*18*90 | |
X travel (manual/auto) | mm | 1000 |
Y travel (manual/auto) | mm | 350 |
Z travel (manual/auto) | mm | 360 |
table feed speed-X | mm/min | |
table feed speed-Y | mm/min | |
table feed speed-Z | mm/min | |
distance from spindle nose to table surface | mm | 20-380 |
spindle taper | ISO50 | |
spindle speed | rpm | 30-1500 |
spindle speed steps | 18 steps | |
Max. swivel angle of head | - | ±45° |
main motor power | kw | 11 |
torque of servo motor (X/Y/Z) | N.m | 15/15/22 |
overall size | mm | 2550/2160/1800 |
N.W. | kg | 3650 |
