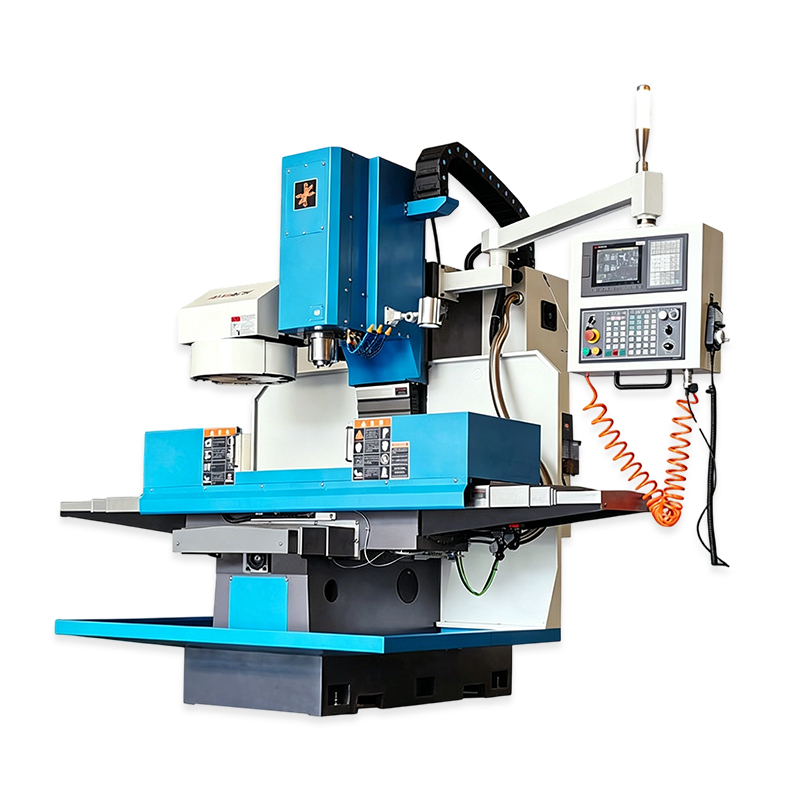

XH7136
WESTE
| Quantity: | |
|---|---|
The XH7136 vertical CNC milling machine features a high-strength cast iron body, with a stable and shock-resistant structure. It is equipped with a BT40 high-stiffness spindle, ensuring smooth operation and sufficient torque. The three axes are equipped with precise pre-tightened ball screws, providing precise positioning and smooth feed, making it suitable for processing precision workpieces. It is standardly equipped with an intelligent CNC system and a conical tool magazine, enabling automatic tool changing and achieving high processing efficiency.
Specifications | Unit | XH7136 |
Worktable Size | mm | 800×360 |
Max Table Load | kg | 500 |
X-axis Travel | mm | 600 |
Y-axis Travel | mm | 360 |
Z-axis Travel | mm | 400 |
Spindle Taper | - | BT40 |
Max Spindle Speed | r/min | 8000 |
Spindle Motor Power | kW | 5.5/7.5 |
Rapid Traverse Speed (X/Y/Z) | m/min | 2008/8/6 |
Cutting Feed Speed | mm/min | 1~6000 |
T-slot Quantity & Size | mm | 3×14 |
Tool Magazine Type | - | Bucket type |
Tool Magazine Capacity | Pcs | 16 |
Tool Change Time | s | 3 |
Positioning Accuracy | mm | ±0.01 |
Repeat Positioning Accuracy | mm | ±0.005 |
Overall Dimension | mm | 2300×1900×2400 |
Machine Weight | kg | 3300 |
Optional Control System | - | FANUC / SIEMENS / GSK |
